Aluminum Foil Roll Rewinder

Aluminum Foil Roll Rewinder

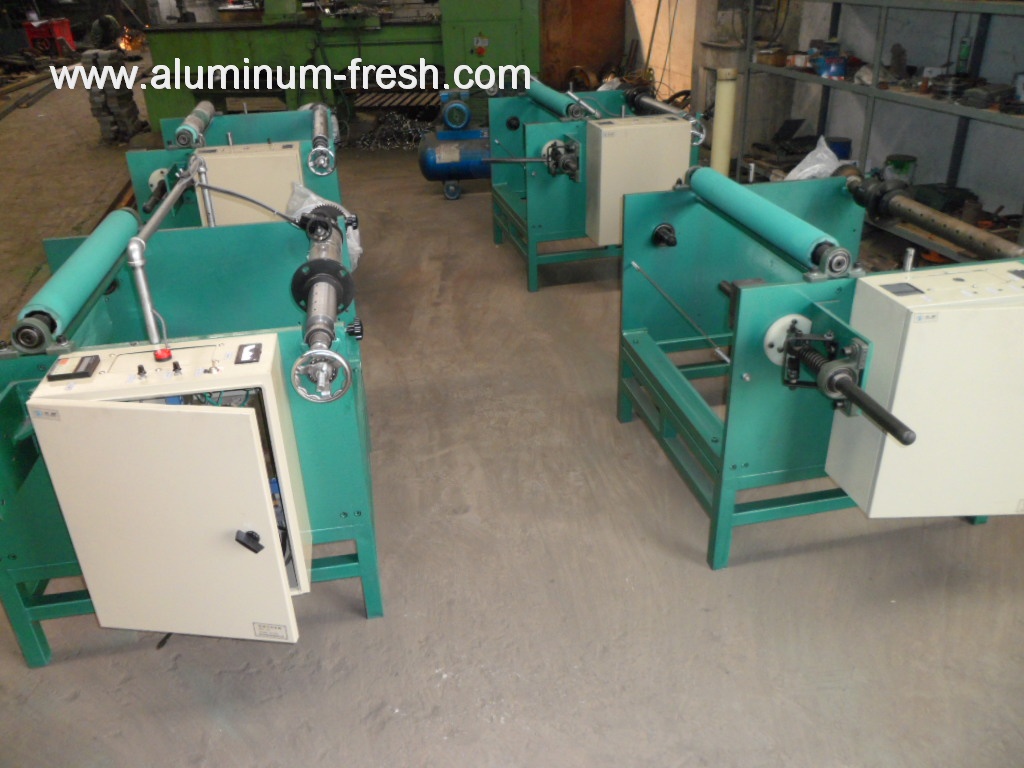

Product name:Aluminum Foil Roll Rewinder
Item:
Details:

Aluminum Foil Roll Rewinder

The machine is mainly produce household aluminum foil roll.

Performance Features:

1. The complete machine adopts PLC control and safety & reliability.
2. In service, material receiving, gluing, winding and cutting, etc. are all automation control.
3. Without glue, winding and decrement of production cost
4. The winding adopts automatic gear shifting control with higher effect.
5. Squirrel cage operation adopts servo control, exact positioning without accumulated error.
6. Rolling small shaft delivery mechanism and exact safety.
7. Wallboard structure and smooth stabilization.
8. Constant tension unwinding and winding stabilization.

Technical Parameters:

  • Thickness of raw material:  0.008mm-0.025mm
  • Raw material width:  100-600mm
  • Maximum unwinding diameter:  Φ600mm
  • Inner diameter of raw material roll core:   Φ75mm
  • Inner diameter of finished product roll core:   Φ25mm,Φ30mm and Φ35mm
  • Cutting length of roll:   2.5m-300m
  • Production efficiency: 1.5—3m per second(90—180m per minute)
  • Magnetic powder brake:  25N.M
  • Magnetic powder clutch:  12N.M
  • Complete machine power:  4KW
  • Overall dimension:  4,000mm×1,550mm×1,820mm
  • Complete machine weight:  About 1,700kg
