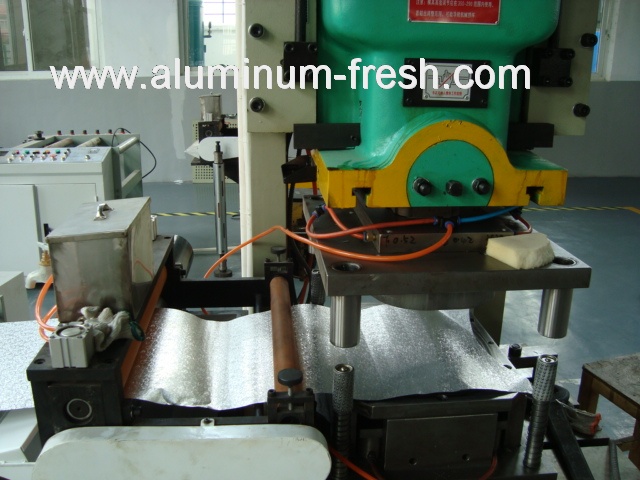

Aluminum Foil Container Machine:

1)  Pressure: 400KN

2)  Hole Size of Collecting Table: 300*300mm

3)  Production Output: 40-70times/min

4)  Board Thickness of Collecting Table: 50mm

5)  Max. Height of Mould: 290mm(excluded working plate 50mm)

6)  Slide Board Size: 220*400mm

7)  The Distance from Center of Slide Piece and Punch Unit: 340mm

8) The adjustment height of Installation of Mould: 60mm

9)  Size of Screw Hole of Mould: 50*60mm

10) Size of Collecting Table: 660*1000 mm*50 mm

11)Dimension: 1500*1125*2315mm (L*W*H)

12) Motor Capacity:5.5KW

13) Weight:4000kg

14) Voltage:3-380v  50Hz    /4wires
